TARANG TELE 86520

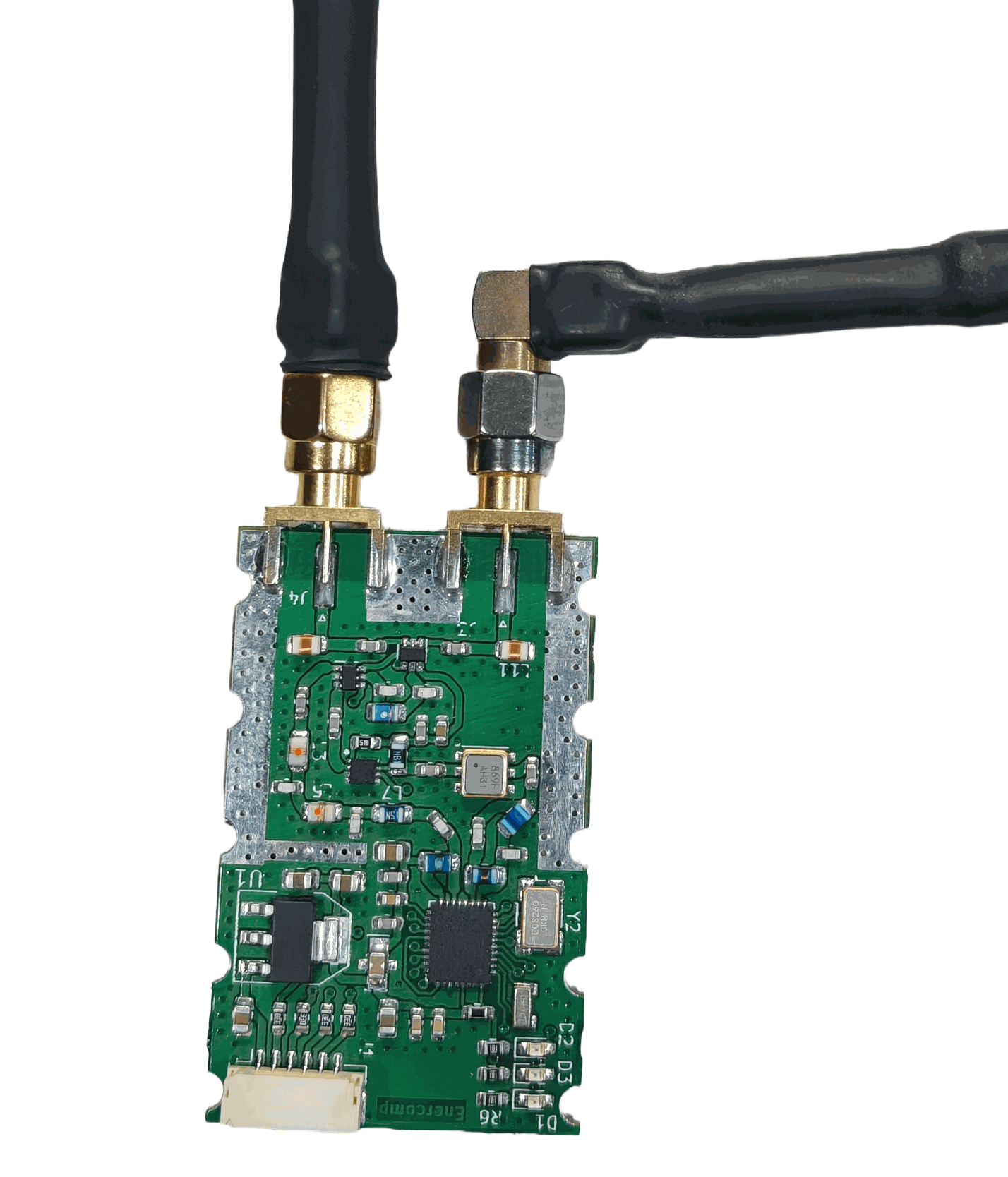

The Enercomp Telemetry Module is a high-performance, long-range data communication system designed for unmanned aerial vehicles (UAVs) and robotics. It provides robust connectivity between ground control stations (GCS) and airborne platforms using advanced frequency-hopping and error-correction techniques.


Customers
WPC Equipment Type Approval Obtained


Approx
8 km Clear LOS and extendable with high gain antenna
Communication Range



2 kbps - 1 Mbps
Data rate



+20 dBm (~100 mW)
RF Output Power



865 MHz to 867 MHz
  Bands



USB for GCS



UART
Interfaces

TECHNICAL SPECIFICATION


Parameter

Model Name

Operating Band

Channel Bandwidth

FHSS Channels

Modulation

Receiver Sensitivity

Serial Baud Rate

Link Latency

Duplex Mode

Input Voltage

Current Draw

Current Draw

Power Consumption

Dimensions (L×W×H)

Weight

Specification

Tarang Tele 86520

865–867 MHz (ISM Band)

200 kHz

10-Channel Frequency Hopping

GFSK (Supports OOK, FSK, 4FSK)

-120 dBm

57600 bps (UART)

30 ms

Half-Duplex

3.3 V – 5 V DC

(TX) 85 mA @ +20 dBm

(RX) 10.7 mA – 13.7 mA

~280 mW (TX @ +20 dBm)

55 mm × 30 mm × 8 mm

18 g
