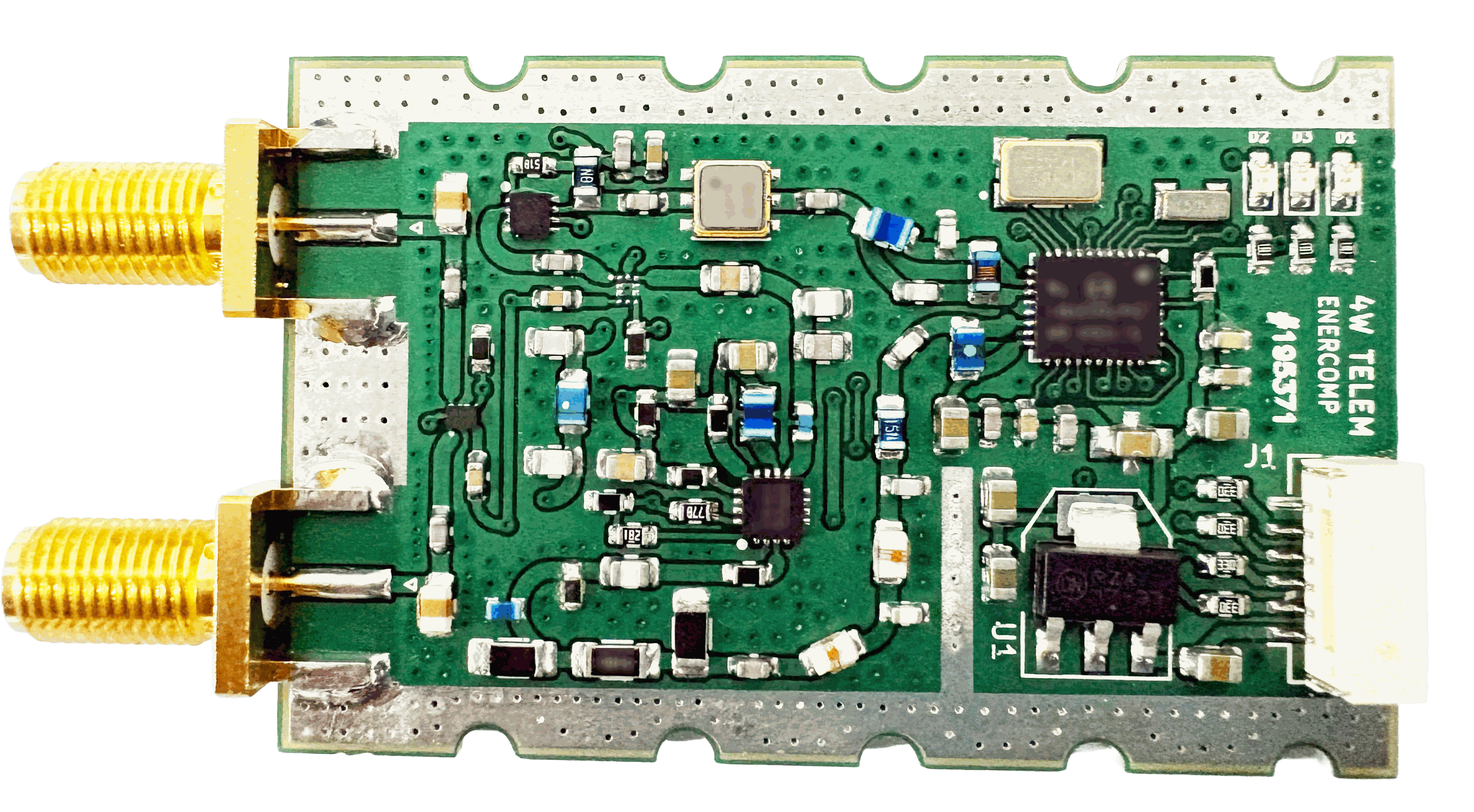

ESPL 4W Telemetry

Engineered specifically for demanding Unmanned Aerial Systems (UAS), the ESPL 4W Telemetry System provides high-power, low-latency data links over extreme distances. Delivering up to 4 Watts of output power in the 865-867 MHz band, this industrial-grade telemetry link ensures seamless real-time flight control, telemetry streaming, and mission-critical communication between your aircraft and Ground Control Station (GCS).


Customers


Approx
15 km with standard omni-directional antennas and
 Approx
25 km using high-gain antennas



4W (Not available for Civilian Use)
RF Output Power



ISM (865 MHz to 867 MHz)
  Bands



2 kbps - 250 kbps
Air Data rate



UART
Interfaces

TECHNICAL SPECIFICATION


Parameter

Model Name

Channel Bandwidth

Channels / FHSS

Modulation

Sensitivity

Antenna Connector

Latency

Duplex Mode

Connector

Supported Protocols

Dimensions (L×W×H)

Weight

Input Voltage

Power Consumption

Specification

ESPL 4W Telemetry

~200 kHz

10 Channels (FHSS Enabled)

GFSK

~ −117 dBm

SMA

33 ms

Half Duplex

JST-GH 6-Pin Connector

MAVLink passthrough / Transparent serial

55 mm × 35 mm × 8 mm

20 g

5 V DC Nominal

~5–6 W Nominal (~10 W @ Max Saturation)
