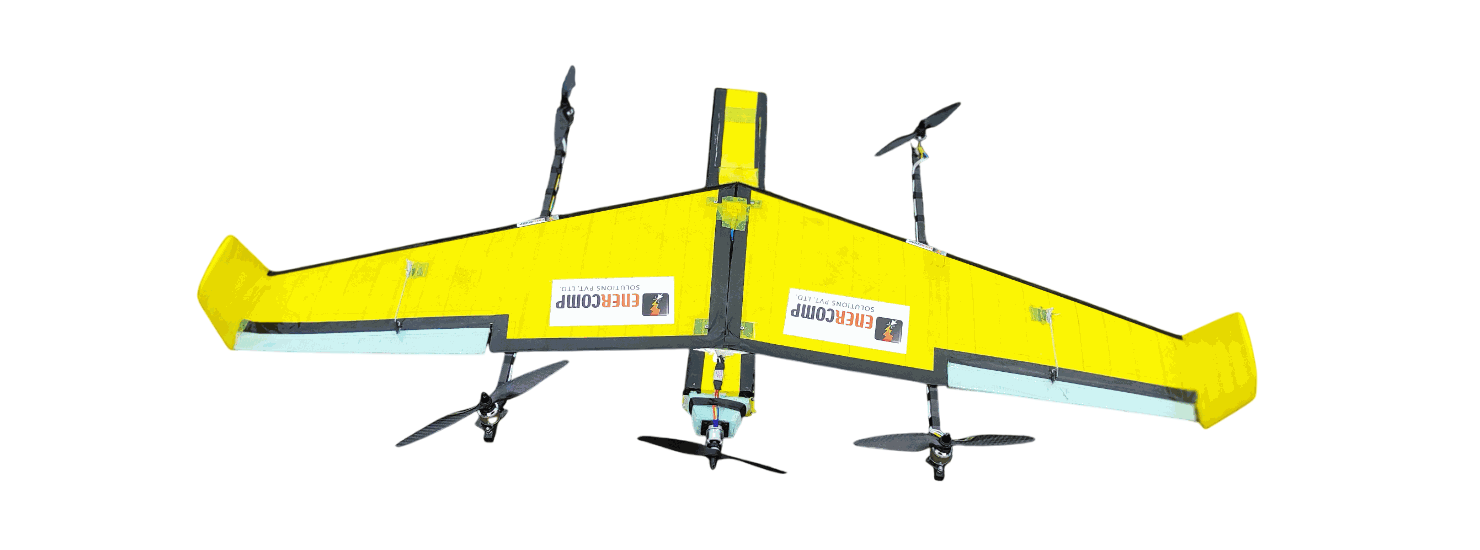

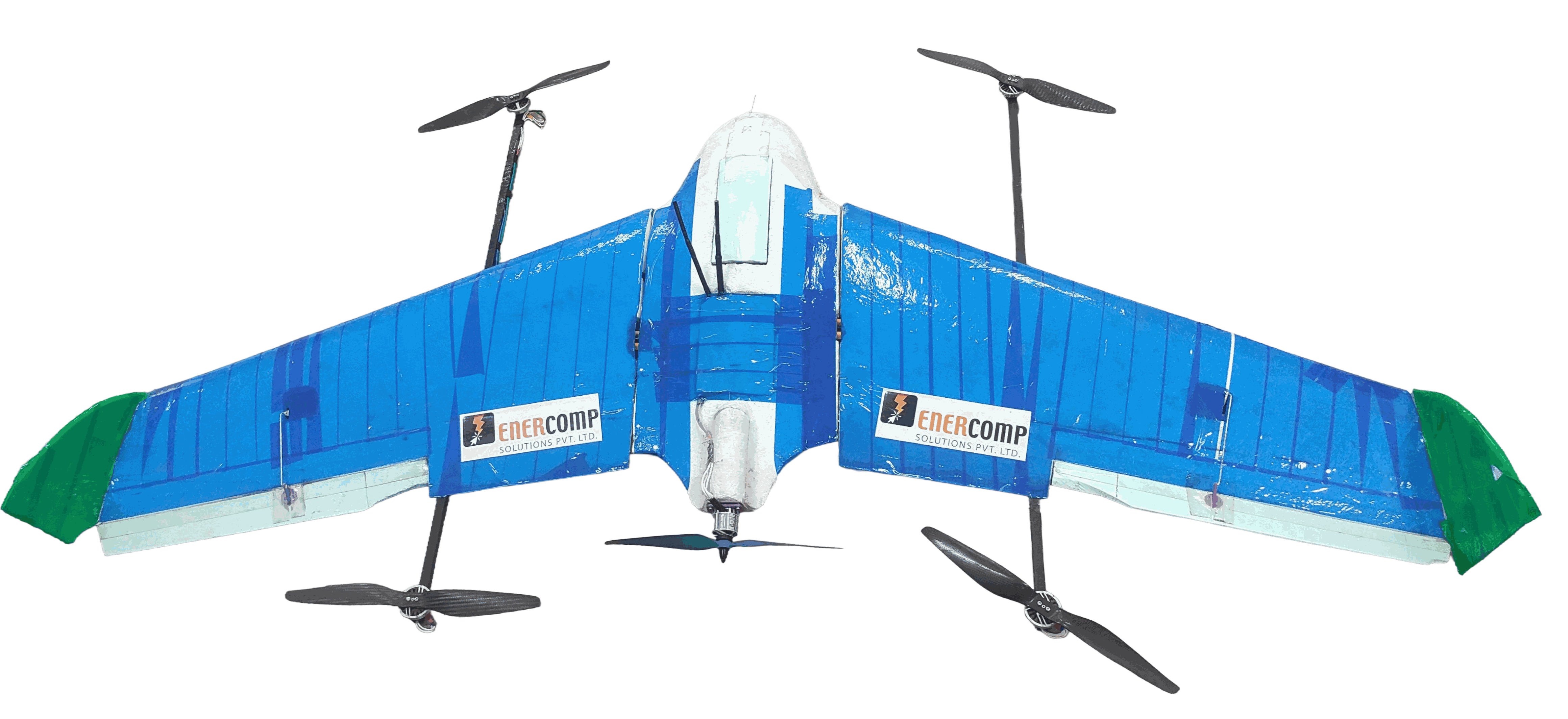

KABOOTAR 4+1
The Kabootar 4+1 is a lightweight electric VTOL UAV tailored for defense training and target simulation. Featuring a 1.6-meter flying wing configuration, it combines vertical take-off with efficient forward flight, eliminating runway dependency. Built using rugged EPP foam and fiberglass, it offers excellent durability, modularity, and rapid field reparability. Powered by Indian-made components and our in-house developed GCS system, the Kabootar supports MAVLink-based operations with real-time telemetry up to 10+ km LOS. Designed for high-sortie, low-cost deployment in live-fire scenarios, this UAV excels in reliability, ease of use, and operational flexibility. Its plug-and-play design and integrated training support make it ideal for tactical exercises, minimizing downtime while maximizing mission readiness.
.png)
Approx
60 minutes
Endurance
18 m/s
Cruise Speed
Cruise Speed
25 m/s
Max Speed
Max Speed
-10 °C to 55 °C
Temperature
Temperature
Approx
60 km
Capable to Travel
11 m/s
Stall Speed
Stall Speed
Approx
3 kg
MTOW
MTOW
Take-Off
One Touch
One Touch
90%
Indigenous Content
Indigenous Content
TECHNICAL SPECIFICATION
Capacity
Type
Dimensions (LxBxH)
Launch & Recovery
Operating Envelope
Payload
Handheld GCS
Swipeable/Replaceable Wings
Operation
Use Case
Specification
Electric VTOL UAV
L: 420 mm, B: 1700 mm, H: 100 mm
VTOL (Vertical Takeoff and Landing) Full automation available
3Km Vertical & 10Km Horzontal
Optional/customizable (TBD)
Optional – Android/Laptop
No major electronics in wings, cost-effective
Single-person operable
Target practice for military training
(small arms, ECM, anti-drone systems)
Kamikazi drone/Loitering ammunition
Low cost surveillance drone
Onboard Equipments
Capacity
Autopilot
GNSS Module
Motors
Propellers
ESCs
Battery
Specification
STM32H7 based with data logging Made in India
GPS Ublox M10 Made in India (Enercomp)
Made in india BLDC motor 14 inch Made in India
13 inch high-thrust props Made in India
55A esc Made in India
Li-ion 330 wh Made in Taiwan Assembled in India
