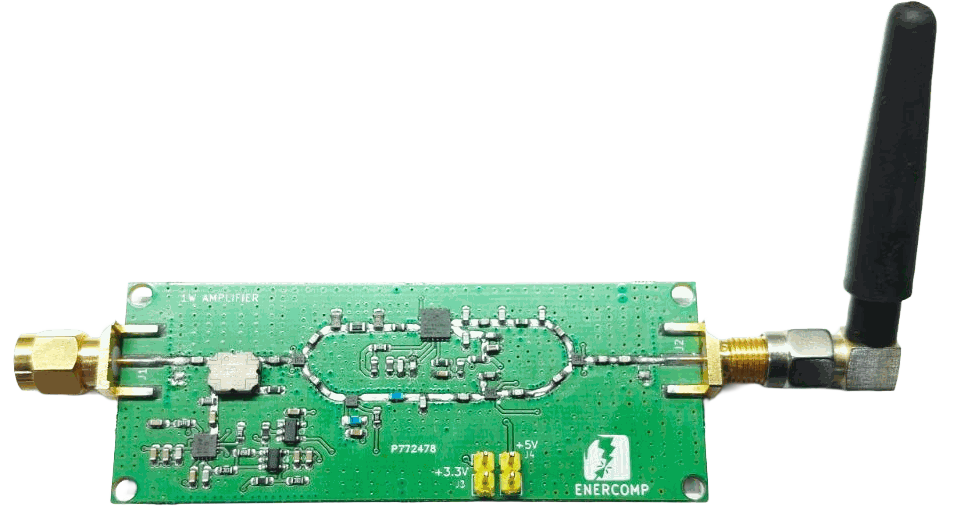

ESPL 2.4GHz Wi-Fi Amplifier
The ESPL 2.4GHz Wi-Fi Amplifier is a compact, high-performance bidirectional RF power amplifier integrated with a low-noise receiving amplifier (PA + LNA). Engineered specifically for 2.4 GHz ISM-band applications—including Wi-Fi networks, long-range drone video links, and telemetry systems—it boosts transmission output power while simultaneously enhancing incoming signal sensitivity.
Approx
~29 dBm
output power with
~34 dB small-signal gain
to extend range significantly
output power with
~34 dB small-signal gain
to extend range significantly
Integrated
10-15 dB LNA gain
with an ultra-low
1.5 dB noise figure
for superior weak-signal reception
with an ultra-low
1.5 dB noise figure
for superior weak-signal reception
2400 - 2500 MHz
Operating Frequency
~ + 29 dBm
Rated Output Power (Tx)
SMA Female (Input / Output)
RF Connectors
RF Connectors
TECHNICAL SPECIFICATION
Parameter
Model Name
Supported Standards
Max EIRP
Tx/Rx Switching Method
Insertion Loss (Bypass)
Harmonic Suppression
Input Voltage
Current Consumption
Dimensions (L×W×H)
Weight
Specification
ESPL 2.4GHz Wi-Fi Amplifier
IEEE 802.11b/g/n & Generic 2.4 GHz ISM
35.15 / 38.0 / 43.0 dBm
Auto-Sensing : RF Switch + Detector
Tx: ~0.5 – 1 dB | Rx: ~0.8 – 1.2 dB
-45 dBc (Typical)
3.3 V & 5 V DC
Tx: ~1 A | Rx/Standby: ~100 – 200 mA
30 mm × 70 mm × 6 mm
20 g
