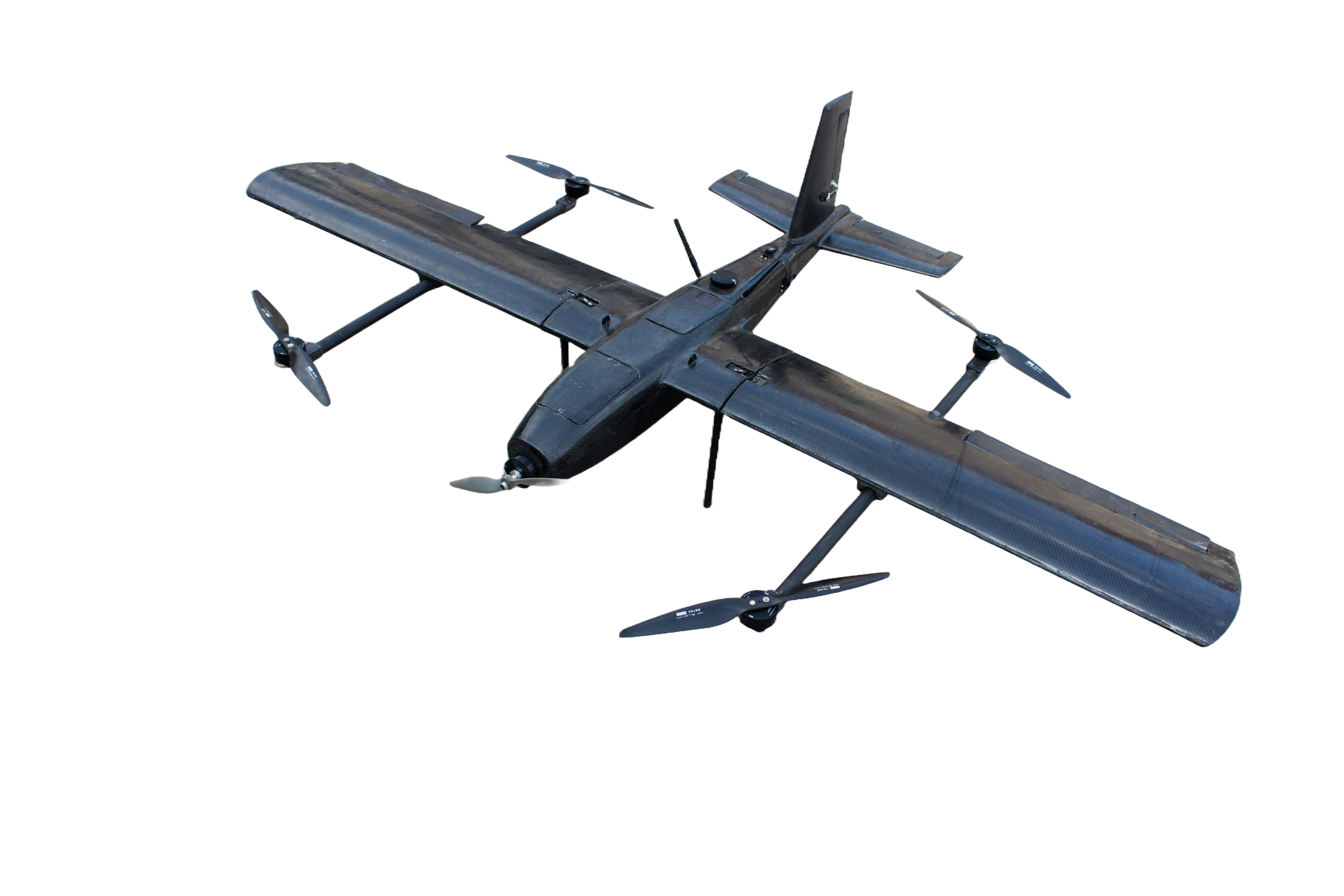

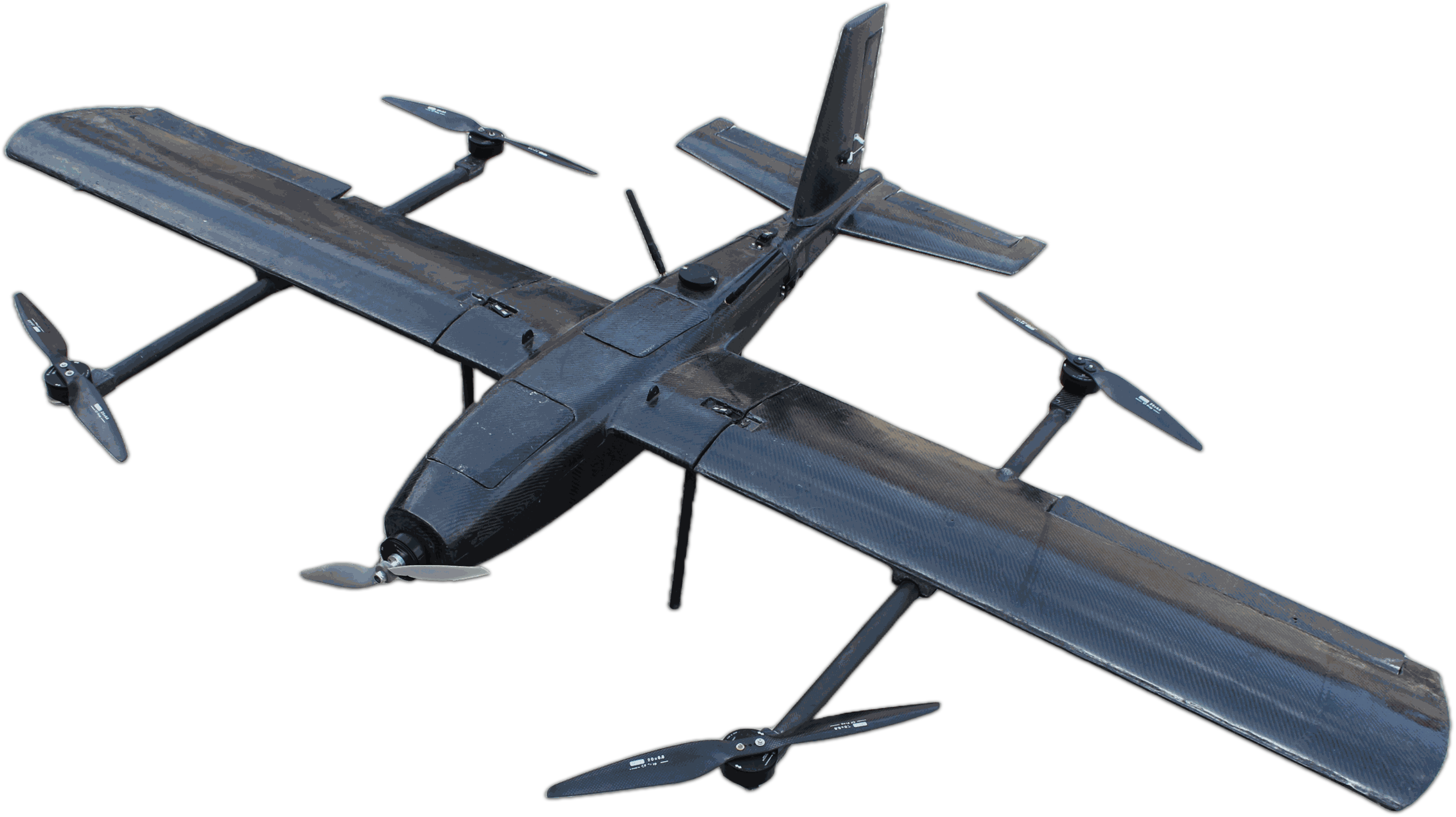

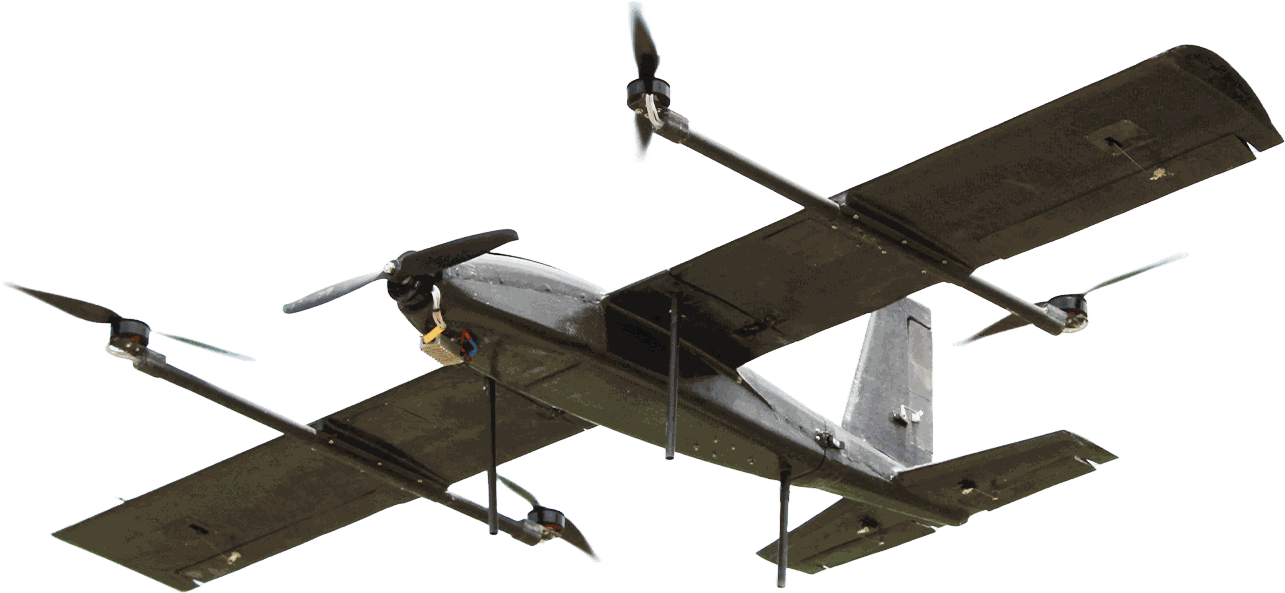

EAGLE VTOL
The Eagle VTOL is expertly designed with advanced aerodynamics, ensuring unmatched efficiency for complex aerial operations. Its lightweight composite fixed-wing structure minimizes drag, boosting both stability and efficiency . The modular boom and wing not only allow easy transport but also streamline airflow for optimal performance. With a high lift-to-drag ratio, the Eagle VTOL delivers seamless transitions between vertical takeoff and fixed-wing flight, making it perfect for long-range tasks such as mapping, surveying, precision agriculture, and environmental monitoring. Its superior weight distribution and flight dynamics ensure exceptional performance for the most demanding professional missions.
Maximum
14 Kg
All-Up Weight
Operating Altitude
120 m (AGL) &
5000 m AMSL
5000 m AMSL
-10°C to +55°C
Operating Temperature
Operating Temperature
60000 meters
Operational Range
Approx
60 Minutes
Endurance
Endurance
100%
Indigenous Components
Indigenous Components

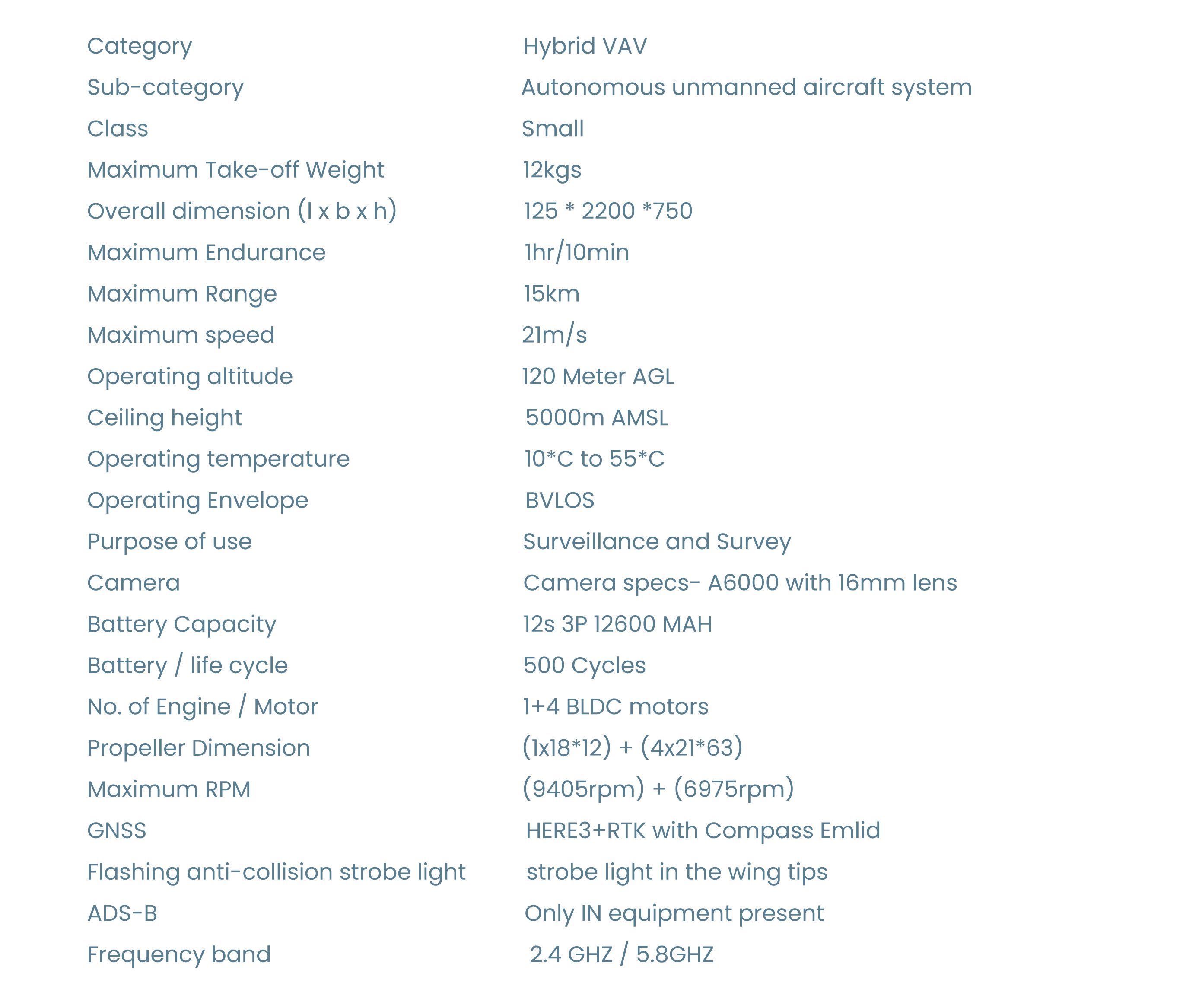

TECHNICAL SPECIFICATION
Capacity
RPA Type
Body Material
Dimensions (L x B x H)
Frequency Band
Maximum Ceiling Height
Cruising Speed Range
Communication Range
Indigenous Content
Camera Options
RTK/PPK (Optional)
Test Compliance
Specification
Hybrid VTOL
Carbon Composite Material
L:1431mm, B:2700mm, H:642mm
5.745 to 5.825GHz
5000 meters AMSL (Tested at Changu, Sikkim)
19 m/s to 25 m/s
10000 meters
100% Indigenous Components
Thermal, Survey, RGB, Surveillance
Enabled
Passed NABL-accredited tests per IEC/IS standards for Damp Heat, Cold, Dry Heat, Mechanical Shock, IP53, and Radiated Immunity.
